Understanding that one size does not fit all, we’ve made adjustable height and width options, ensuring the CL10AV3 can adapt to your shop’s unique requirements. Furthermore, a wide selection of accessories means that no matter what challenges you face, the CL10V3 is equipped to tackle them, making it the definitive choice for any forward-thinking shop.



Features

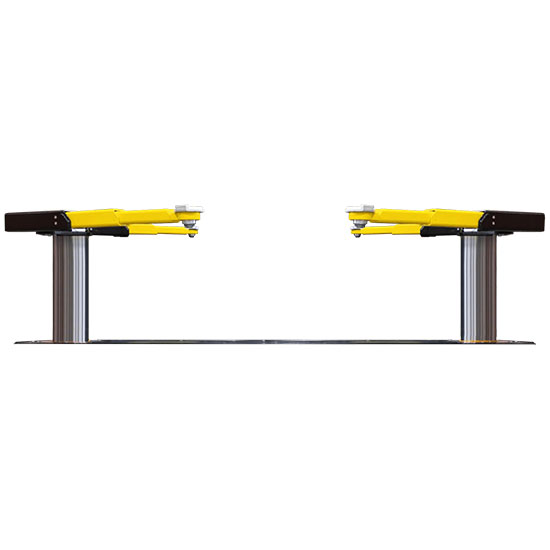

• 10,000 lbs. Adjustable Width Versymmetric Two Post Lift with Dual Pendant Controls.
• Versymmetric offset front arms provide directSPOT to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay, maximizing service capabilities and revenue potential.
• Oversized 5" diameter pulley and heavy-duty 5/16" cable reduces stress on equalization system and increases cable life.
• 48" elongated carriage design decreases load on bearing.
• 11'8" standard height with 2' and 4' extensions available allows lift to be placed in standard service bay with 12' ceiling.
• Padded overhead shut-off system prevents vehicle damage from being raised too high.
• Fully-gusseted baseplate design reduces column deflection.
• Single-point mechanical lock release system with jacket coated protection and no-lock cable pulleys, and double-clutch release bar, protects cable from stretching while disengaging both column locks simultaneously.
• Rubber door guards provide added security against vehicle door damage.
• Includes 2' column extension.



Technical

Color	Red Blue Black
Lifting height	74 1/8”	inch
Effective height	13’- 3” or 13’- 9”	inch
Load carrying capacity	10000	lbs
